LPG & NH3 Pressure Relief Valve

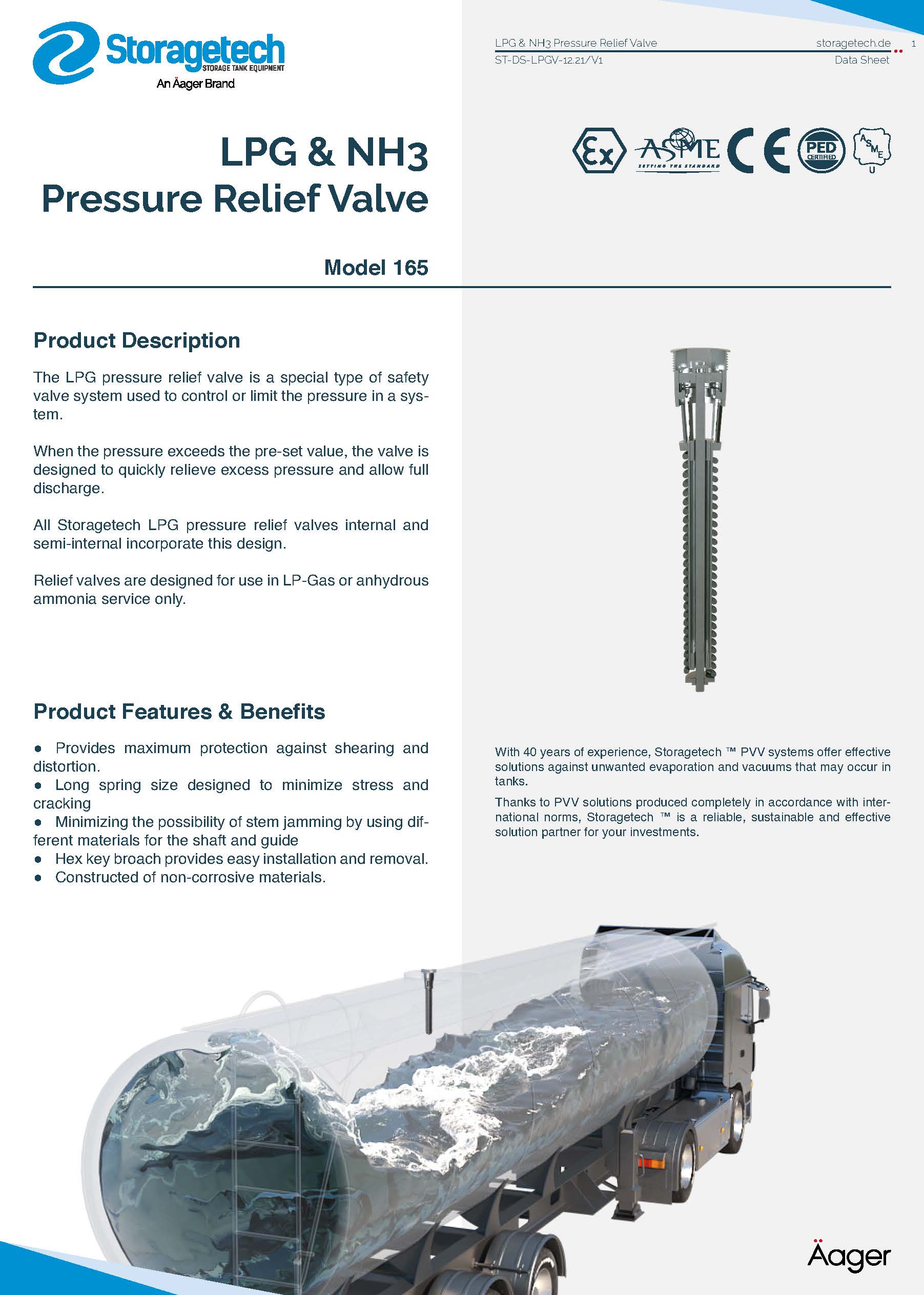

Model No: 165

LPG (Liquefied Petroleum Gas) and NH3 (ammonia) are the goods which might carry risks during transportation and storage. Vapor that occurs during storage and transportations should be controlled carefully. That can be done with special pressure relief valves which are specialized for these gases.

There are basically 2 types of LPG & NH3 PRV, fully internal and semi internal.

For fully internal, not to affect from the outside damage, all parts of the PRV is embedded into the tank. With this way it is exposed the pressure from inside directly and is not being affected from any outer intervention. When a vehicle is carrying LPG or NH3 and if there occurs any accident, fully internal PRV helps to keep the gas inside. It is mostly used for the transportation purposes.

On the other hand, semi internal pressure relief valves are used mostly for the tanks which store LPG & NH3. Cause of those tanks are fixed and do not have the risks of rolling over, semi internal PRVs are the most suitable solution for them.

For fully internal PRVs, all materials are made from the SS316 L, spring is stainless steel and gasket is viton. That creates a great compatibility between parts of the PRVs and serves the best solution that based on the many years’ experience. Fully internal PVRs are designed as 2″ and 3″.

For fully internal PRVs, upper body is produced from brass and rest of it is stainless steel. As the result of our expertise based on our engineering and design experience, we used in our designs the compatibility of brass and stainless steel. That ensures the longest endurance also with the concern of usability.

Pressure Vacuum Valve production certificates

Construction

Temperature Intervals: -20°C ≤ T ≥ +65°C
Permitted Pressure Drop: %10 ≥ Pressure decrease
Type: Pressure relief valve series 2″ semi-internal, 2″ fully internal and, 3″ fully internal sizes.
Component Material: LPG pressure relief valve internal connection materials are manufactured with stainless steel 316 L and SS 302 quality material on requirements.
Connection Type: Pressure relief valves are manufactured following ASTM and DIN norms in with the usage area of the customers.
Pressure: 18 – 27 bar
