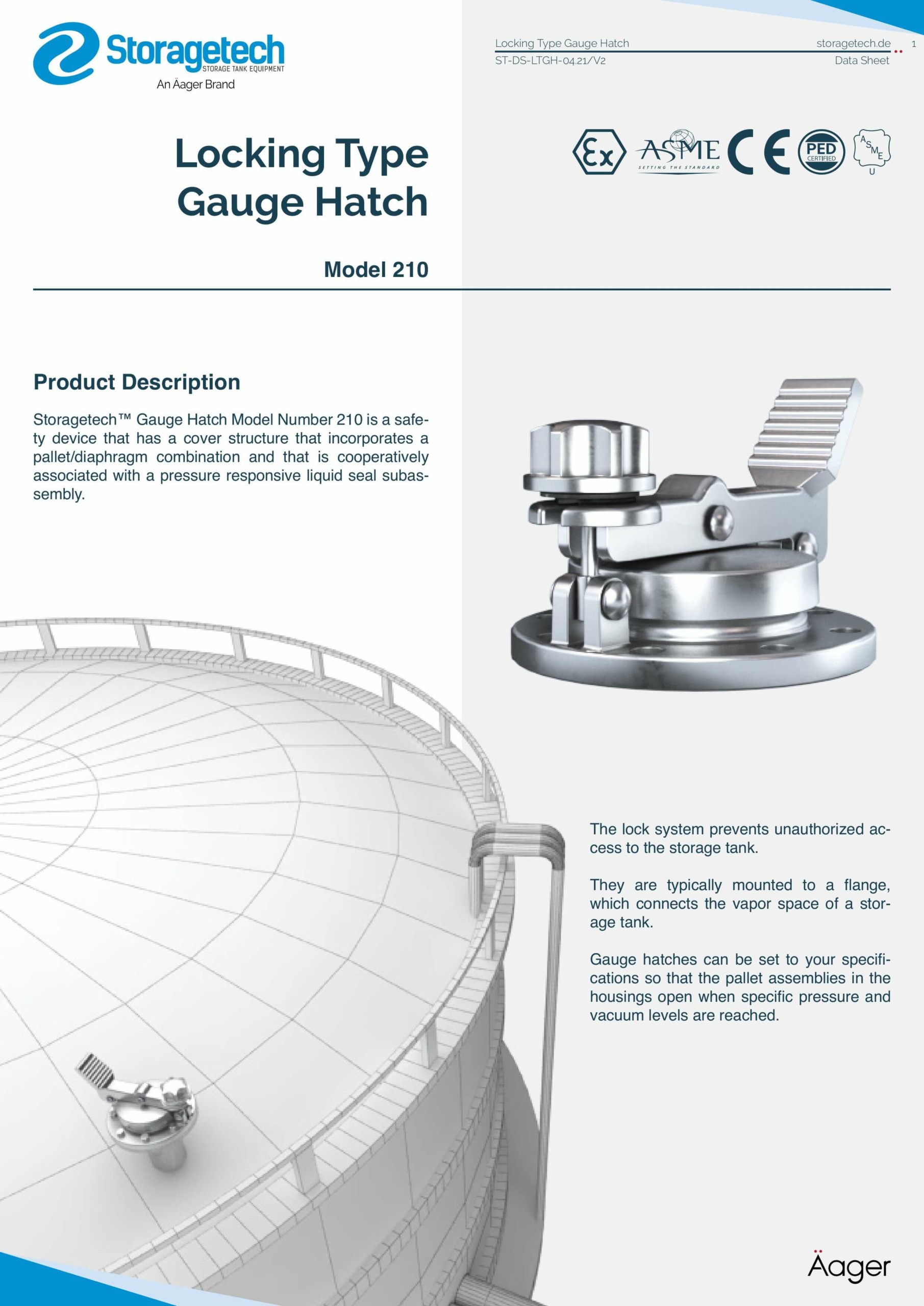

Gauge Hatch (With lock)
Model No: 210
Storagetech™’s Model 210 Lockable Gauge Hatch has a locking-screw to prevent inadvertent or unauthorised opening. Operated by foot or knee, it leaves the operator hands-free to dip the tank’s contents for depth, take product samples, and obtain temperature measurements.
Designed as a non-sparking unit the lockable gauge hatch is bolted to a tank roof flange, the hatch offers simple and easy access to the vapour space of bulk storage tanks.
Setting Range
| Pressure: | Weight-loaded up to 15 mbar |
| Ambient temp: | -20°C to +60°C |
Construction
| Standard sizes: | 2” to 8” 200mm |
| Flanges: | API Class 150 RF, DIN raised-face |
| Body: | Carbon steel, 316 stainless steel, cast aluminium, cast iron |
| Paint finish: | Powder Coating, Colour RAL 9006, Epoxy Paint, Colour RAL 9006, Customer Specification |
| ATEX cert: | Ex II 1/2 G c IIB |
