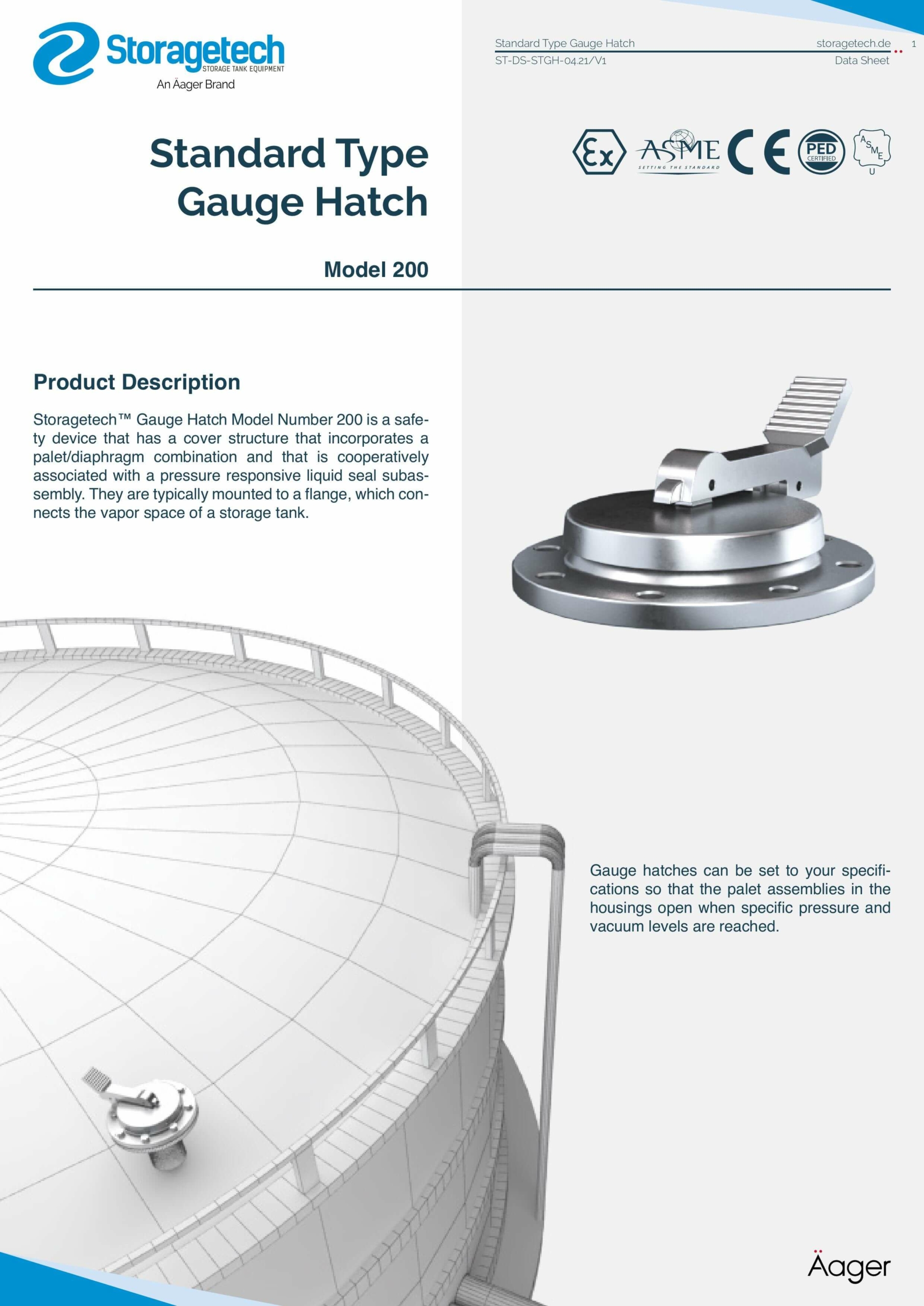

Gauge Hatch
Model No: 200
Storagetech™’s MODEL 200 Gauge Hatch offers a simple and easy access into the vapour space of bulk storage tanks. Opened by foot or knee, it leaves the operator hands-free to dip the tank’s contents for depth, take product samples, and obtain temperature measurements.
The Gauge Hatch is bolted to a tank roof flange. Thanks to its spark free design, offers safe operation.
Setting Range
| Pressure: | Weight-loaded up to 15 mbar |
| Ambient temp: | -20°C to +60°C |
Construction
| Standard sizes: | 2” to 8” 200mm |
| Flanges: | API Class 150 RF, DIN PN16 |
| Body: | Carbon steel, 316 stainless steel, cast aluminium, cast iron |
| Paint finish: | Powder Coating, Colour RAL 9006, Epoxy Paint, Colour RAL 9006, Customer Specification |
| ATEX cert: | Ex II 1/2 G c IIB |
