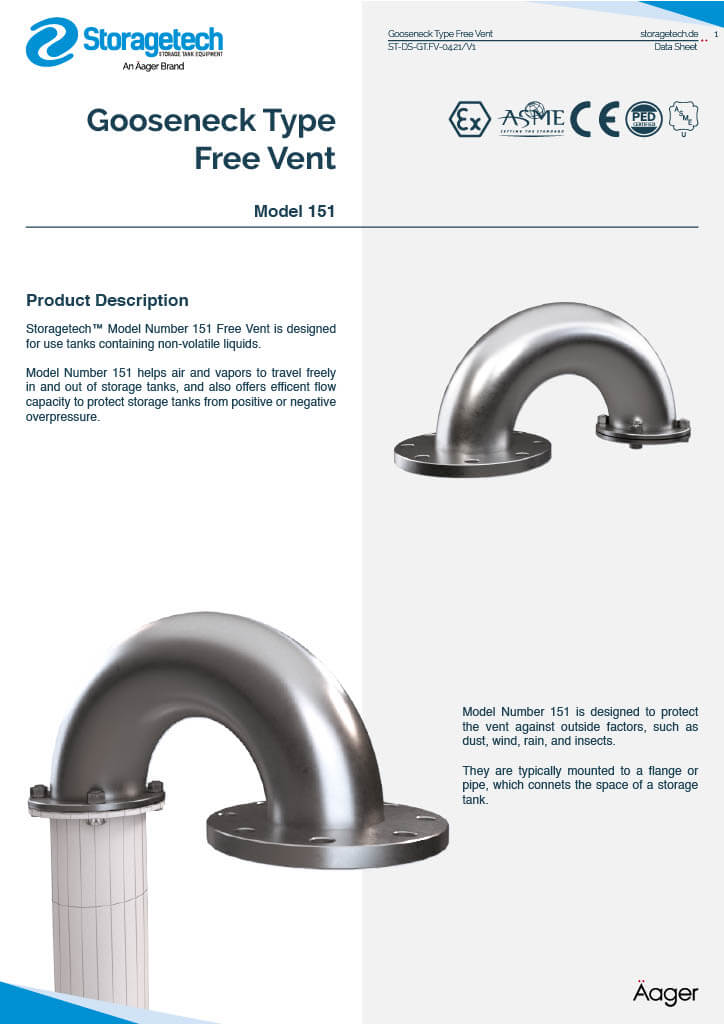

Free Vent (Gooseneck Type)
Model No: 151
Gooseneck free vents are used on atmospheric tanks containing non-volatile products. Installed on the appropriate flange at the top of the tank, Storagetech™’s Model 151 prevents the development of a pressure or vacuum that could cause the tank to distort during loading or emptying. The vent is supplied with an earth point, copper tag and cable.
Inexpensive, the Model 151 is effective, robust, and maintenance-free.
Construction
| Sizes: | 2” to 12” DN50 to DN300 |
| Body/flanges: | Carbon steel, Stainless steel, Customer specification |
| Flange drilling: | API Class 150 PN16 Special |
| Screen: | Stainless steel AISI 304 |
| Paint finish: | Powder Coating, Colour RAL 9006, Epoxy Paint, Colour RAL 9006, Customer Specification |
Design & Manufacturing Specifications
The size of the vent should be calculated in accordance with API Standard 2000 (ISO 28300).
Venting Atmospheric and Low-Pressure Storage Tanks or other international standards.
